HYGINA U5 Ultra Installation Guide

Use this guide to review U5 Ultra bathroom fit, connection notes, setup steps, and support resources before installation.

  • HYGINA U5 Ultra smart toilet installation guide card for advanced model setup and connection steps

    U5 Ultra Fit Checklist

    Review rough-in distance, drain position, side clearance, nearby outlet, water inlet location, delivery access, and handling needs before setup.

    Review U5 Ultra Steps

HYGINA U5 Experience: First-Time Use, Unboxing & Installation

Watch a customer-perspective walkthrough of the U5 experience, from unboxing and installation preparation to first-time use. Use this video as a visual overview, then follow the delivered manual and the installation requirements on this page for your specific bathroom.

HYGINA U5 Ultra smart toilet with automatic lid, ambient lighting, and premium smart features

First-Time Use

Unboxing

Installation

Before You Start

Confirm the basic bathroom requirements before installation to reduce fit issues, connection problems, and unnecessary returns.

  • HYGINA smart toilet bathroom fit icon for checking drain position, space, and installation requirements

    Bathroom Fit & Rough-In

    Confirm the Standard 12-inch rough-in, drain center, flange height and condition, skirted-base clearance, shutoff-valve position, and available space. A raised, damaged, or offset flange or a valve inside the skirt area can require plumbing changes.

  • HYGINA smart toilet power and water icon for checking outlet and inlet angle valve readiness

    Power & Water Connection

    Confirm a nearby 110V / 60Hz GFCI-protected outlet, listed maximum power of 1350W, and a compatible water inlet angle valve. The public product information does not state cord length or final circuit sizing, so a qualified electrician should confirm placement, grounding, capacity, splash-zone requirements, and code compliance.

  • HYGINA smart toilet installation tools icon for preparing required setup tools before installation

    Tools & Accessories

    Prepare the required tools, sealing materials, water hose, and installation accessories before starting the installation process.

  • HYGINA smart toilet two-person handling icon for safer lifting, positioning, and setup

    Two-Person Handling Recommended

    Smart toilets are heavy ceramic products. Two-person handling is recommended for safer lifting, positioning, alignment, and final placement.

Installation FAQs

Which installation guide should I use?

Use the HYGINA U5 Ultra Installation Guide for your U5 Ultra smart toilet. Review the bathroom fit checklist, connection notes, step-by-step setup flow, and final function testing before installation.

Can I install a HYGINA smart toilet by myself?

Some homeowners may be able to complete the installation, but professional installation is recommended if plumbing, electrical work, lifting, alignment, internal reconnection, or bathroom fit confirmation is required.

What should I check before installation?

Confirm the Standard 12-inch rough-in, drain center, flange height and condition, skirted-base and shutoff-valve clearance, nearby 110V / 60Hz GFCI-protected outlet, water inlet angle valve, finished floor, delivery path, and two-person handling plan.

What If the Existing Flange or Shutoff Valve Conflicts with the Skirted Base?

Do not force the toilet into position. Have a qualified plumber check flange height, damage, offset, drain alignment, finished-floor condition, and shutoff-valve clearance against the current U5 Ultra drawing. Flange repair, relocation, or valve changes should be completed before final placement and sealing.

Why Can Adding a GFCI Outlet Change the Installation Cost?

Older bathrooms may need a new receptacle, circuit extension, grounding correction, or code-required placement work. Cost varies by panel capacity, wire route, wall access, permits, and local labor. Request an itemized quote from a qualified electrician before ordering; HYGINA does not set local electrical labor rates.

What if my actual unit or accessories look slightly different from the images?

Minor hardware, accessory, or internal layout differences may occur due to production updates. Always follow the delivered product configuration and contact HYGINA Support if anything is unclear before continuing installation.

Do I need to test the functions after installation?

Yes. After installation, turn on the water supply and power, then test flushing, washing, drying, heated seat, remote control, side knob, foot sensor control, automatic lid operation, foam shield, UV hygiene care, and other U5 Ultra functions before daily use.

HYGINA U5 Ultra Installation Guide

Follow the step-by-step process below to install your HYGINA U5 Ultra smart toilet. Because U5 Ultra includes built-in tank flushing support and advanced smart functions, review each connection, alignment, sealing, and testing step carefully before daily use.

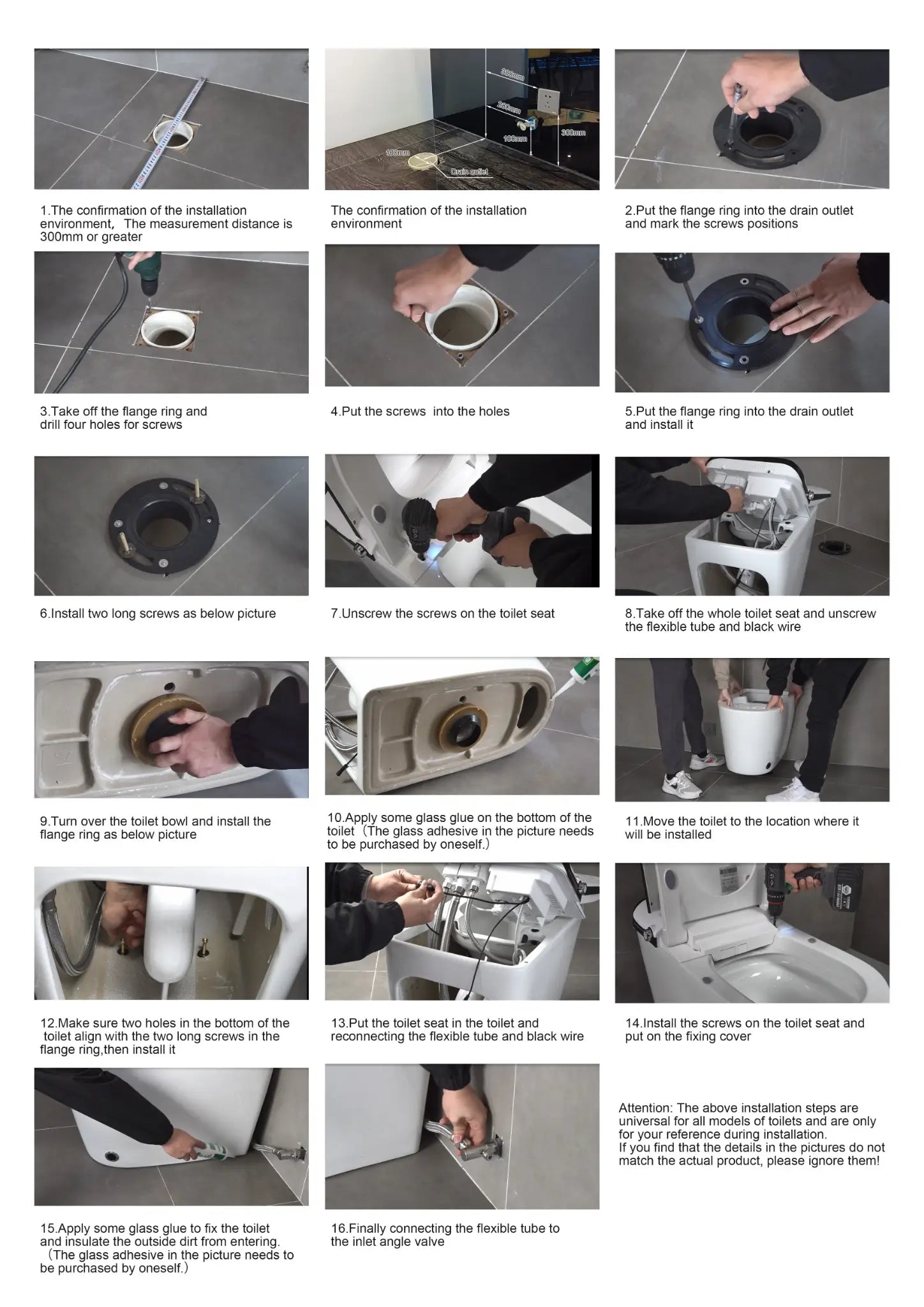

  • Prepare the Installation Area

  • Install and Secure the Flange Ring

  • Position the Toilet and Reconnect Components

  • Final Assembly, Sealing & Function Test

Detailed U5 Ultra Installation Steps

Step 1 ā€” Site Preparation

  • Confirm the installation environment, rough-in distance, drain position, and available space.
  • Place the flange ring over the drain opening and mark the screw positions.
  • Drill the screw holes according to the marked positions.
  • Insert the screws and prepare the base for flange installation.

Step 2 ā€” Flange & Base Setup

  • Install and secure the flange ring.
  • Install the two long positioning screws.
  • Remove the seat screws as instructed.
  • Carefully lift the lid assembly and remove or disconnect the required tank, pipe, and wire components according to the delivered product configuration.

Step 3 ā€” Positioning the Toilet

  • Carefully turn the bowl as needed and confirm the flange ring position.
  • Apply sealant to the bottom contact area as required.
  • Move the toilet into position with two-person handling.
  • Align the base with the long screws and lower the toilet into place.

Step 4 ā€” Reconnection, Sealing & Testing

  • Reinstall the seat and reconnect all required internal parts.
  • Secure the seat screws and fixing cover.
  • Reconnect the tank pipe and white small pipe to the angle valve according to the delivered product configuration.
  • Apply sealant around the base after alignment is confirmed.
  • Turn on water and power, then test flushing, washing, drying, lid operation, remote control, app control, and other U5 Ultra functions.

U5 Ultra Connection Notes

For U5 Ultra, built-in tank components, pipes, and wiring may need to be removed or reconnected during installation. Complete all reconnections carefully, then confirm flushing, washing, drying, heated seat, remote control, foot sensor control, automatic lid operation, foam shield, UV hygiene care, and lighting before sealing the base.

Need Help Before Installation?

Not sure whether your bathroom is ready for HYGINA U5 Ultra? Contact us before installation. Please include U5 Ultra, rough-in distance, power outlet location, water inlet location, and bathroom photos if available.

Contact HYGINA Support

Official HYGINA Support Channels

For order, warranty, or troubleshooting questions, contact HYGINA support by email. For visual guides and product education, follow our official social channels.

Email Support

Get help with orders, warranty questions, installation issues, and product troubleshooting.

Contact Support

U5 Ultra Installation & Care Videos

Watch official videos about bathroom-fit checks, Standard 12-inch rough-in planning, outlet and water connections, built-in-tank flushing, backup flush, nozzle care, and U5 Ultra feature walkthroughs.

Watch U5 Ultra Guides

Facebook Updates

Follow HYGINA for product updates, homeowner tips, support reminders, and brand news.

Follow on Facebook

Bathroom Ideas

Explore modern bathroom upgrade ideas, smart home inspiration, and lifestyle content.

Follow on Instagram

Important Installation Note

The installation steps and images are provided as general guidance. Product details, accessories, and internal connection layouts may vary slightly by production batch. Always follow the delivered product configuration and your on-site installation conditions. If plumbing or electrical work is required, professional installation is recommended.
